WEIGHT
MEASURING
LOAD CELL

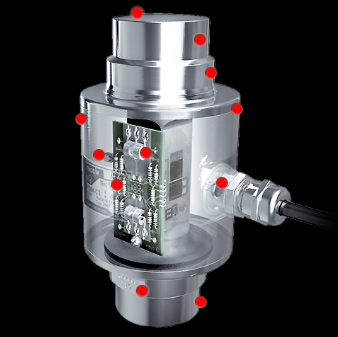

MV150
|
|
|
МВ150 is the latest engineering thought breakthrough in force and weight measurement.
Now it is one of the world's best weight measuring load cells for using in truck and railroad scales.
|
STANDARD DIMENSIONS
Load cell and force applying devices dimensions are the same for all capacities up to 60t.
|
|
C3 ACCURACY CLASS ACCORDING TO R60 OIML
Approved by testing in European laboratory.
IMPLOSION PROTECTION RATE OEXIAIICT6X
MV150 load cell is ready for using in explosive areas.
|
|
OPERATING TEMPERATURE RANGE -50...+50°C
|
|
SEALING
WITH LASER WELDING
Reliability of joint welds is provided by the world's best laser welding machines.
|
|
PROTECTION
IP68
|
|
LIGHTNING PROTECTION SYSTEM
«LIGHTNING GUARD»
Prevents from load cell electrical scheme insulation faults in the case of scales parts hit by static discharges, thunderbolts or weldind overvoltage. «Lightning Guard» is included into standart package.
|
|
HERMETICITY CHEK BY
PLASMA LEAK DETECTOR
Each load cell is checked according to a special rocket production technology. Absense of flow leaks above 7*10-9 Pa*m3/s is guaranteed.
|
|
RESISTOR FOR
ADJUSTMENT
Unique method of adjustment increases reduces «human factor» effect and rising the reliability and quality of load cell.
|
|
METAL-GLASS INSULATOR
The most important element in hermeticity. Its analogues in Electronics are semiconductors and microchips bodies. It prevents ingress of moisture through cable input.
|
|
ANTI-ROTATION FIXATION
Load cell body turning is prevented providing a needful freedom degree.
|
|
STAINLESS STEEL 100%
|
|
|
